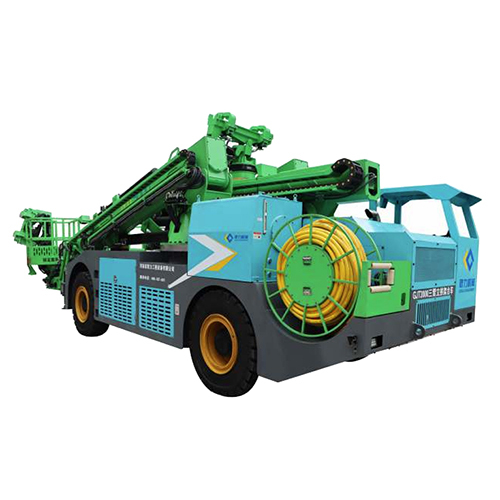

Send InquiryGJT3000 Tunnel Arches Installing Machine
GJT3000 Tunnel Arches Installing Machine Specification
- Voltage
- 380V / 50Hz
- Color
- Yellow
- Usage
- Installing and positioning steel arches in tunnels
- Load Capacity
- 3000 kg
- Operating System
- Electric-hydraulic integration
- Feature
- Heavy-duty, mobile, remote control operation, high efficiency
- Power
- 22 kW
- Application
- Tunnel arch support system installation
- Height
- 2600 mm
- Weight
- 6800 kg
- Diameter
- Suitable for tunnel arches up to 6 m
- Material
- High-strength steel structure
- Length
- 7500 mm
- Surface Treatment
- Anti-corrosive paint coated
- Clamping Type
- Hydraulic arch clamping mechanism
- Control Type
- Wireless remote control and panel operation
- Working Speed
- Up to 8 m/min
- Track Gauge
- 1435 mm (standard) or customizable
- Installation Efficiency
- Can assemble up to 30 arches per shift
- Safety Features
- Automatic locking, overload protection, emergency stop
- Max Arch Height Supported
- Up to 6 m
- Mobility
- Self-propelled trolley with rail wheels
- Hydraulic System Pressure
- 25 MPa
- Operating Temperature Range
- -20°C to +45°C
